IBM Networking

Images	Category	Description

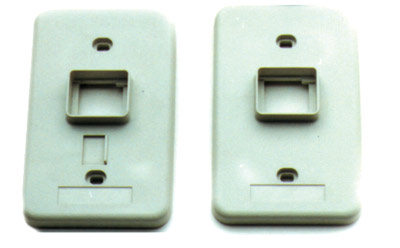

	Token Ring - Face Plate	• Type 1 or Type 2 face plate

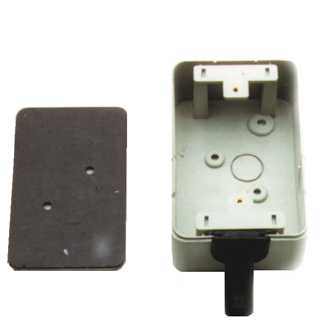

	Token Ring- Surface Mount Box	• Surface mounting box for Type 1 or Type 2 face plate

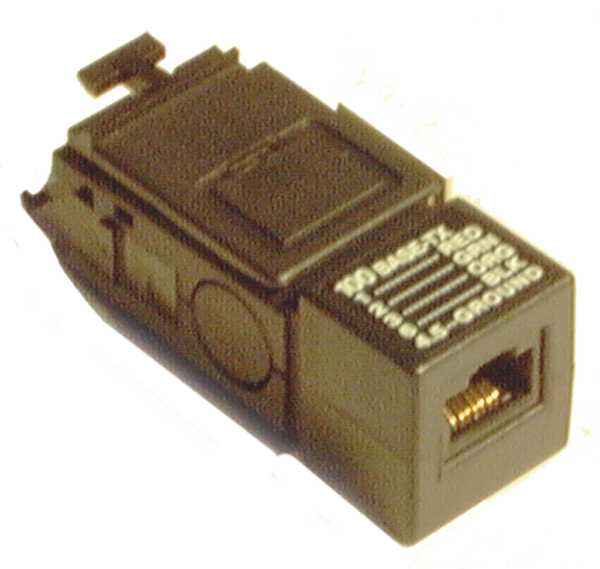

	Token Ring- Impedance Matching Adapter	• 105 ohm UTP to 150 ohm STP impedance match • 100BaseTX, 10BaseTm Token Ring Type 3 application

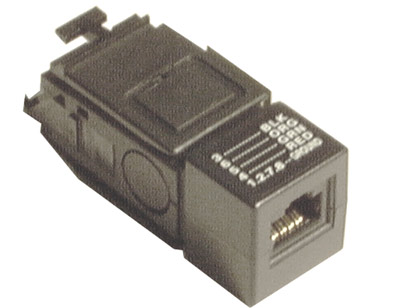

	Token Ring- Data Connector to Modular Jack Adapter	• Non-impedance match adapter • Applications for 10BaseT, Token Ring, or 3270 (USOC) wiring

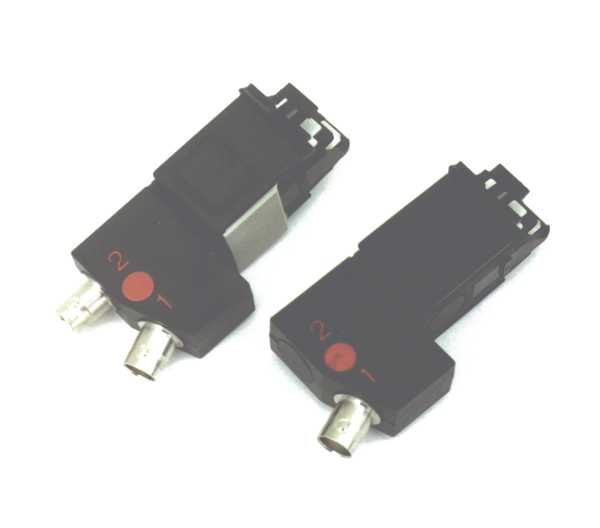

	Token Ring- Red Cableless Balun	• To connect 3278-type coax to Type 1 cabling • 93 ohm Coax to 150 ohm shielded twisted pair impedance match

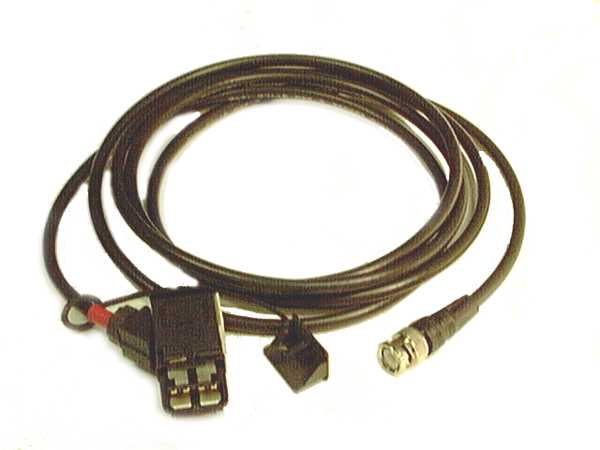

	Token Ring-Red Balun Assembly	• To connect 3278-type coax to Type 1 cabling • 93 ohm Coax to 150 ohm shielded twisted pair impedance match, 8ft pigtail

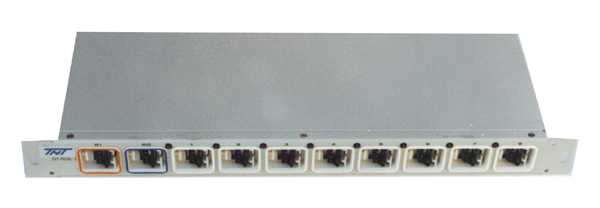

	Token Ring- MAUs	• Built-in relay reset button • Supports 4/16 Mbps data speed • 8 port Type 1 MAU
	Token Ring - Type 6 Patch Cables	• ETL certified Type 6 cables • AMP or T&B data connectors both sides • Custom lengths are available upon request
	Token Ring - PC Network Adapter Cables	• ETL certified Type 6 cables • AMP or T&B data connector to DB-9 molded with long thumb screws

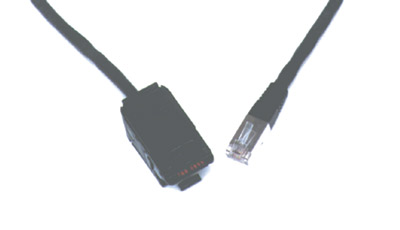

	Token Ring - Data Connector to STP Molded RJ45 Cables	• AMP or T&B data connector • Molded RJ 45 shielded plug • Modified Type 6 STP cable
	4/16 Mbps Type 3 Media Filter	• Supports 4 or 16 Mbps Token Ring Protocol • Meets FCC Part 15, subpart Class A • EMI/RFI emissions filtering

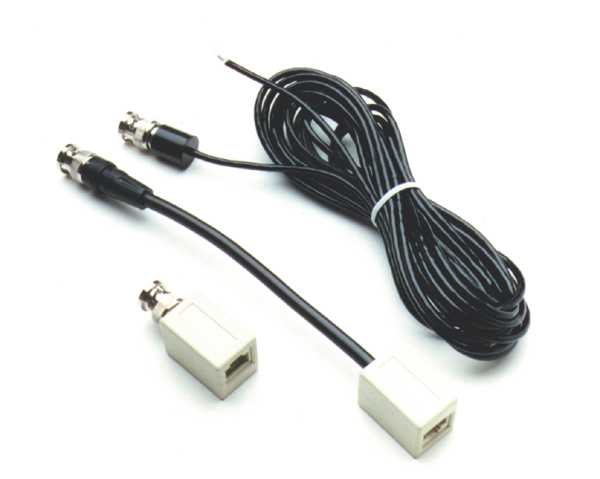

	IBM 3270-BNC RG-62 Balun	• Converts 93 ohm coax to 110 ohm UTP • Supports up to 2,000ft over 24AWG UTP cable • One-piece pigtail type; built-in pulse transformer
	IBM 3270- RG-62 BNC Cable Assembly	• RG-62, 93 ohm black coaxial cable, PVC • Gold center pin, dual crimp, RG-62 BNC male • Customer length available upon request

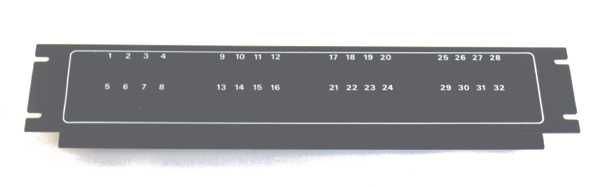

	IBM 3270- BNC Feed-Through Panel	• Metal panel in black color • Isolated BNC female/female bulkhead loaded • Clear numbering on the panel
	IBM 3270- BNC Balun Patch Panel	• RJ-45 jacks in the front • BNC female connector in the back • Built-in compact pulse transformer

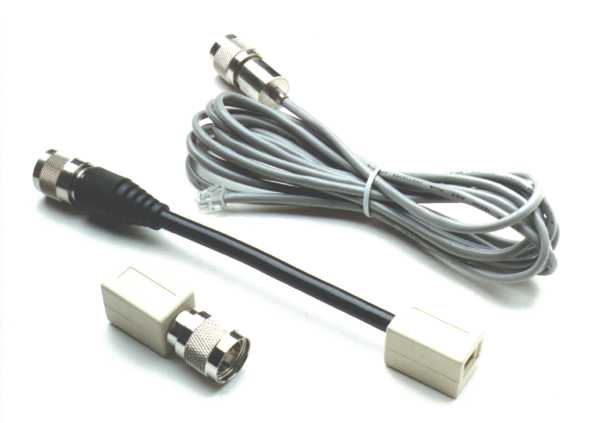

	IBM 3X, AS400- 100 OHM Twinaxial Balun	• Converts 100 ohm twinax cable to 110 ohm UTP • Supports up to 2,000ft on System 3X, or 1500ft on AS/400 over 24AWG UTP cable

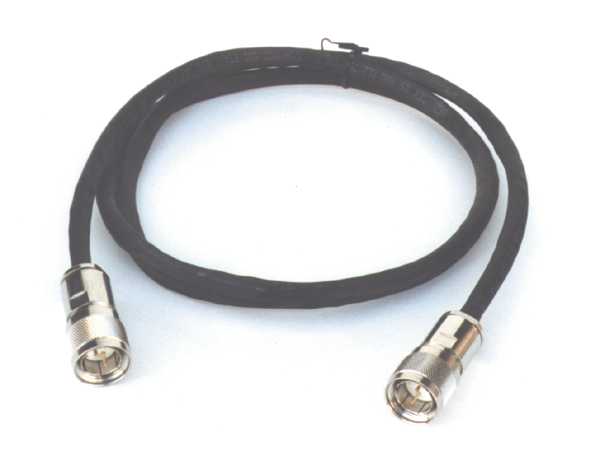

	IBM 3X, AS400- Twinaxial Cable Assembly	• Twinaxial male connectors on both ends • PVC or Plenum twinaxial cable • Custom length available upon request

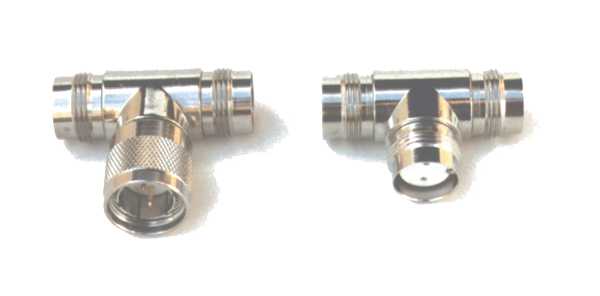

	IBM 3X, AS400- Twinaxial T Adapter	• Female/Male/Female or Female/Female/Female

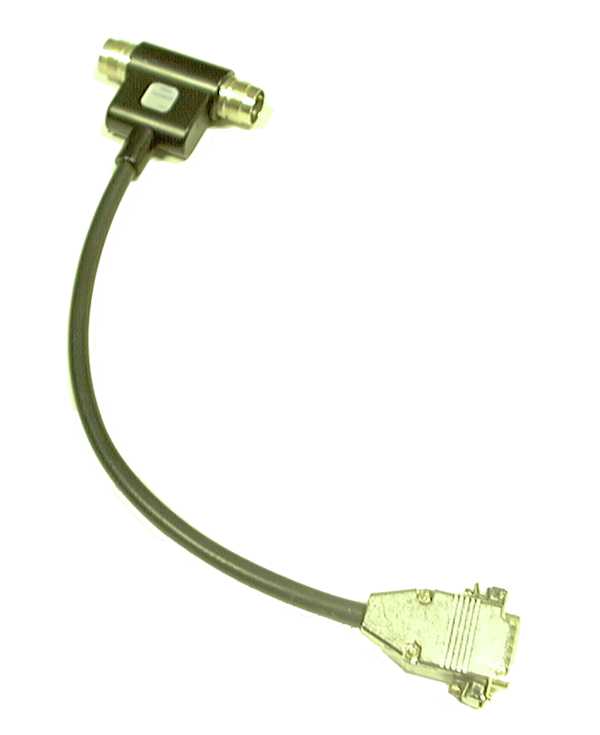

	IBM 3X, AS400- Self Terminating T-Cable	• Built-in terminator • DB-15, DB-9 or Twinax

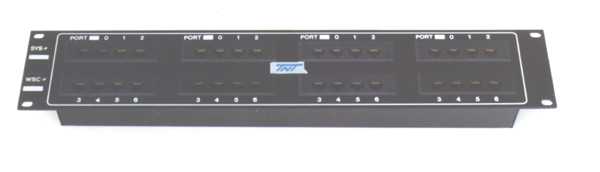

	IBM 3X, AS400- Non Power AS/400, 3X UTP Star Uub	• Total port isolation • Maximum distance : 1,000 ft on AS400, or 2,000 ft on 3X
