Patch Panel

Images	Category	Description

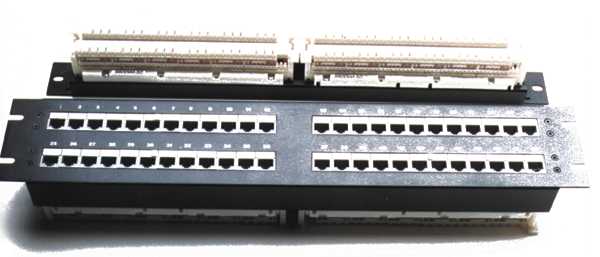

	Cat5e Patch Panel - 110 style	• Space saving, 19" wide rack mountable • PCB type 110 termination • Compliant with EIA/TIA Cat5e standard

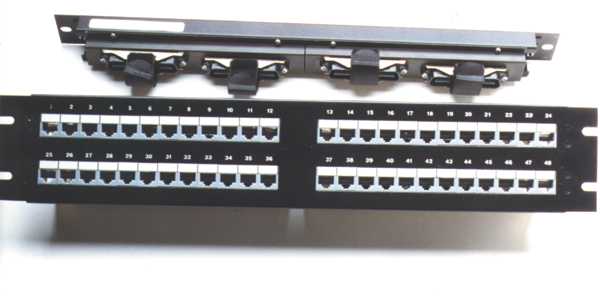

	Cat5e Patch Panel - Telco 50 pin Style	• RJ45 on PCB in the front • RJ-21 (Telco 50 pin) female on the back • Compliant with EIA/TIA Cat5e standard

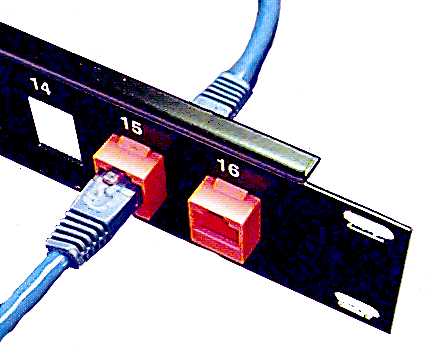

	Cat5e RJ45 Feed Through Panel	• Compliant with EIA/TIA Cat5e standard • 19" wide panel, loaded with Cat5e RJ45 couplers • Bezel type RJ45 jacks flush with the front panel

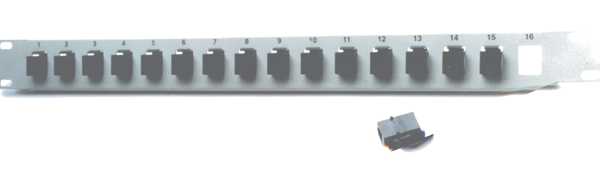

	Modular Jack Feed Through Panel	• 19" wide rack mountable • Loaded with snap-in type in-line couplers • RJ12 (for voice), or Non-Cat5 RJ45 types

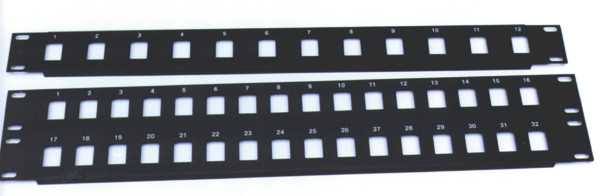

	Modular Jack Blank Panel	• Black color, 1/16" thickness • Cutout size meets virtually all snap-in jacks • Numbering on panel

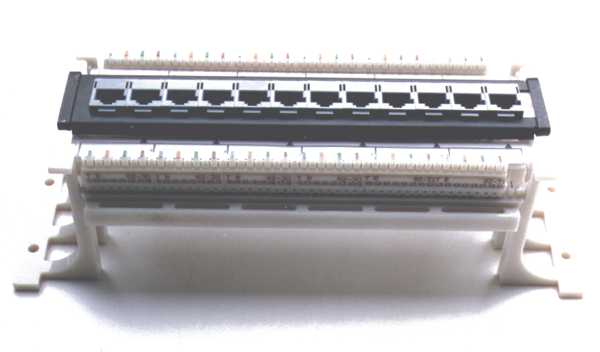

	Wall Mount Panel, Block, Harmonica	• For small voice and data connections • Serve as an intermediate distribution frame (IDF)
	Cat4 Telco 50 pin Patch Panel	• Compact, low profile design, 19" wide • Equipped with male RJ21 (Telco 50 pin) • Female RJ21 available upon request

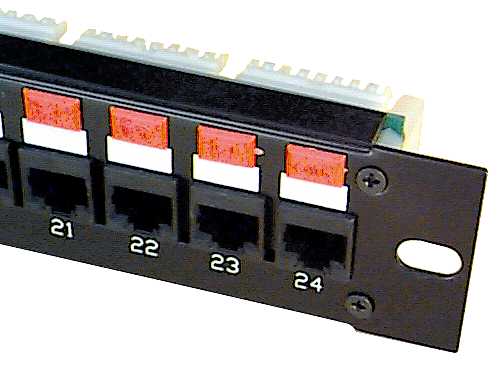

	Cat4 Patch Panel - 110 Style	• Compact, low profile design, 19" wide • 110 block on the back • NEXT at 16MHz greater than -46dB

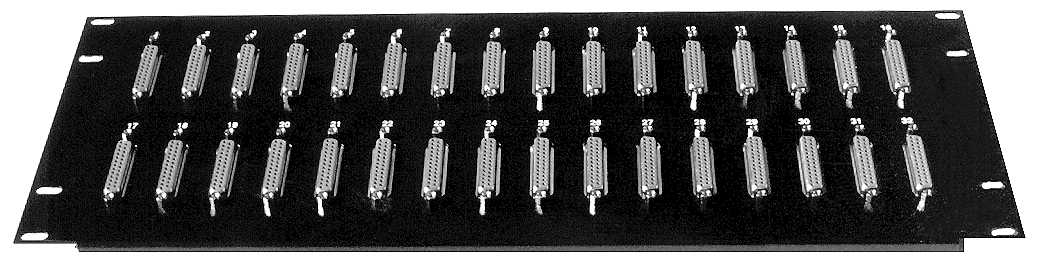

	D-sub Feed Through Panel	• Black, metal panel with numbering • Loaded with load-profile D-SUB gender changers • 19" wide panels
	Video Balun Patch Panel	• F-Connector/BNC/RCA to RJ45 Panel • RJ45 to F-Connector/BNC/RCA Panel • With 12, 16, and 24 Ports available
	USB Feed-Thru Panels	• Provide 4 types of panels: • A female (Front) to A female (Rear) • A female (Front) to B female (Rear) • B female (Front) to A female (Rear) • B female (Front) to B female (Rear).
<not available>	Firewire Feed Thru Panel	• IEEE 1394 Firewire Feed Thru Panel • 4 Pin to 4 Pin, 4 Pin to 6 Pin, 6 Pin to 6 Pin • 12, 16, and 24 Ports Available
