Images |
Category |
Description |
![](./images/S1(D06sd50-d25).jpg) |

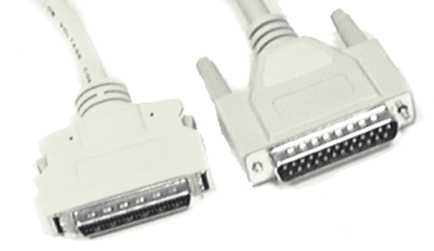

SCSI
Cable - External |
SCSI
1 to SCSI 1, SCSI 2, or SCSI 3
SCSI
2 to SCSI 2, SCSI 3, or VHDCI
SCSI
3 to SCSI 3, or VHDCI, VHDCI to VHDCI
|
![](./images/S2(D11).jpg) |

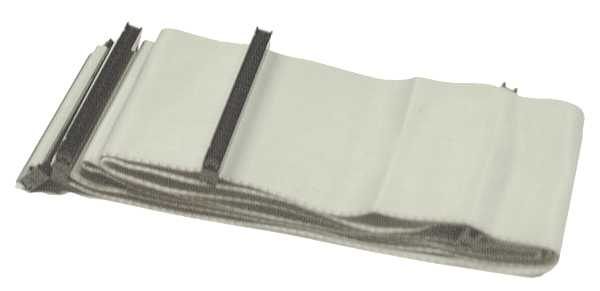

SCSI
Cable - Internal |
Internal
cable : 50 pin or 68 pin
Ribbon
cable or Round cable
LVD or ULTRA 160 |
|

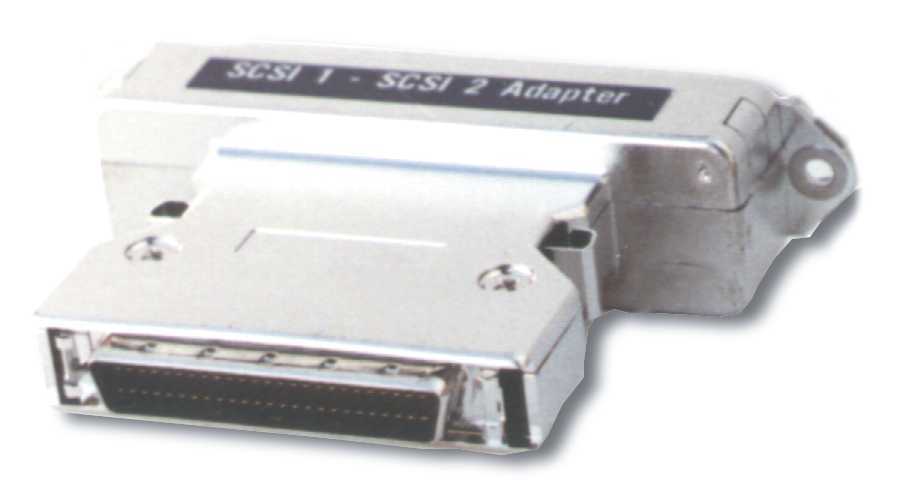

SCSI
Adapter - External
|
SCSI
1 to SCSI 1, SCSI 2, or SCSI 3
SCSI
2 to SCSI 2, SCSI 3, or VHDCI
VHDCI
to VHDCI |
![](./images/S4(D13-SD68F-ID50F).jpg) |
SCSI
Adapter - Internal
|
HPDB68
to IDC 50
SCA
80 to IDC-50 / HPDB68 |
![](./images/S5(D05-SD50).jpg) |

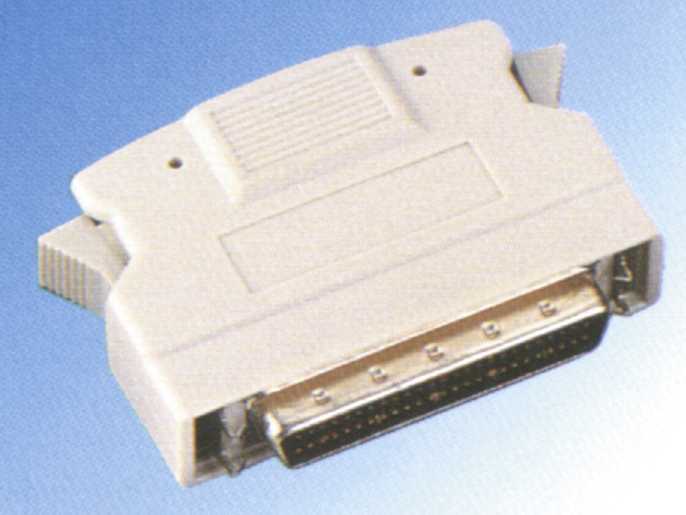

SCSI
Terminator - External
|
SCSI
1, SCSI 2, SCSI 3, or VHDCI
Passive,
Active, or Differential |
![](./images/S6(D05).jpg) |

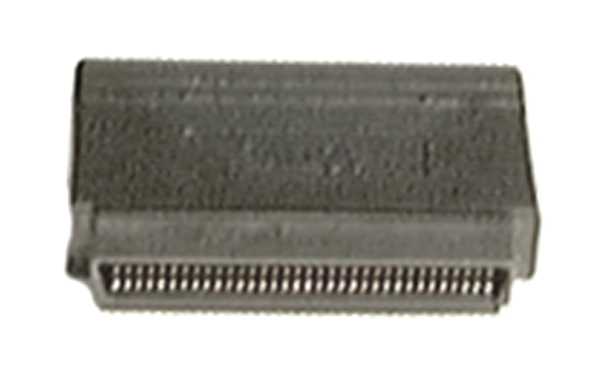

SCSI
Terminator - Internal
|
HPDB68
or IDC 50
Active
or differential |
![](./images/S7(D05-SD68-SD50).jpg) |

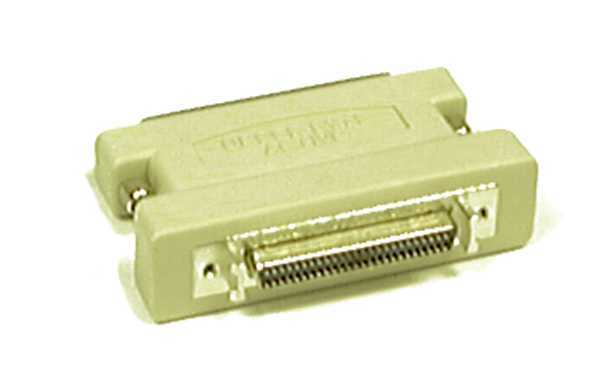

High
Line Terminator/Adapter - External
|
SCSI
3 HPDB68 to SCSI 1 or SCSI 2
External
adapter with built in terminator |
![](./images/S8(D05-SD68ID50).jpg) |

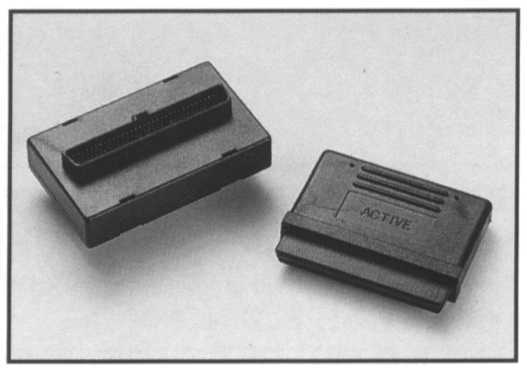

High
Line Terminator/Adapter - Internal |
SCSI
3 HPDB68 to IDC 50
Internal adapter with built in terminator |
