Video Balun

FEATURES & SPECIFICATION

• Allows traditional 75 ohm coaxial cable to be replaced by one-pair UTP in the CATV, VHF and FM video signal.
• Saves extra cost of expensive and space-consuming coax cable and connects RF video equipment to TV, monitors, etc shortly.
• 100% tested for reliability & durability to quarantee signal integrity.
• Command Rejection: -20dB or higher at 40-500MHz.
• Insertion Loss: CATV channels 2-61 <= 3db.
• Return Loss: -18dB or higher to 10-550 MHz.
• Bandwidth: 5 MHz to 550 MHz.
• Distance(Max): 100M via Cat5 UTP.

• BNC female to RJ45

• F Connector female to RJ45

• RCA female to RJ45

Part Number	Description	1 - 24	25 - 49	50+

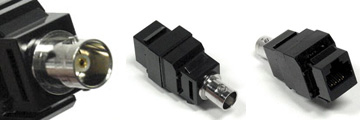

M01-BF-RJ45	BNC Female/RJ45,Snap-In Type	$12.67	$12.10	$11.23

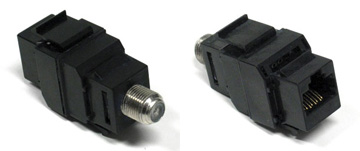

M01-FF-RJ45	F Connector Female/RJ45,Snap-In Type	$12.67	$12.10	$11.23

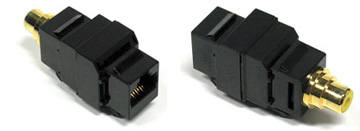

M01-RF-RJ45	RCA Female/RJ45,Snap-In Type	$12.67	$12.10	$11.23
M02-BM-RJ45	BNC Male/RJ45. Stand Alone Unit	$12.14	$11.59	$10.76
M02-FM-RJ45	F Connector Male/RJ45. Stand Alone Unit	$12.14	$11.59	$10.76
M02-RM-RJ45	RCA Male/RJ45. Stand Alone Unit	$12.14	$11.59	$10.76
M03-BF-110	BNC Female/110 Terminal	$15.66	$14.95	$13.88
M03-BM-110	BNC Male/110 Terminal	$14.61	$13.94	$12.95
M03-FM-110	F Connector Male/110 Terminal	$12.14	$11.59	$10.76
M03-RM-110	RCA Male/110 Terminal	$12.67	$12.10	$11.23
